Nichicon-ULD2W220MHD6TN - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	450 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	20000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	292 mA @ 120 Hz
Ripple Current @ High Frequency:	525.6 mA @ 100 kHz
Impedance:	-
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	0.866" (22.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

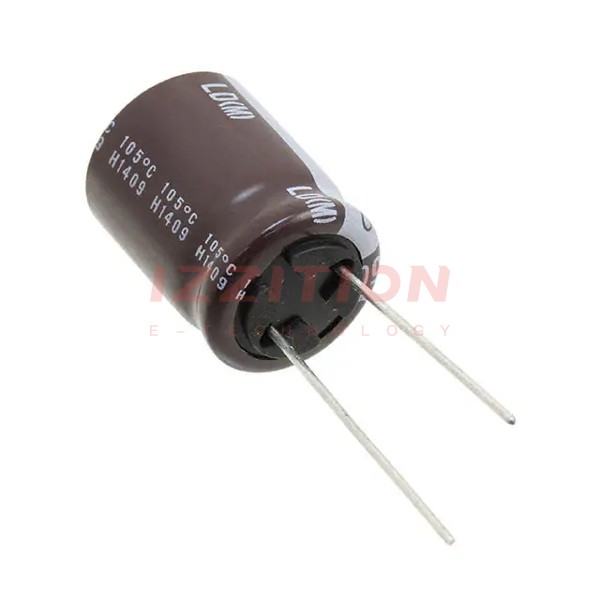

Nichicon ULD2W220MHD6TN
