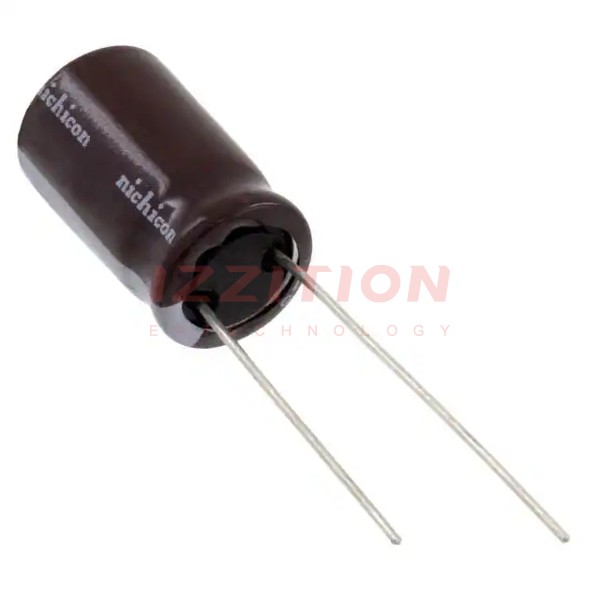

| Part Number | ULD2G8R2MPD1TD | ULD2W8R2MPD1TD | ULD2D8R2MPD1TD | ULD2E8R2MPD1TD | ULD2G1R2MPD1TD | ULD2G2R2MPD1TD |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Obsolete | Obsolete | Obsolete | Not For New Designs |
| Capacitance | 8.2 µF | 8.2 µF | 8.2 µF | 8.2 µF | 1.2 µF | 2.2 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 450 V | 200 V | 250 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C | 20000 Hrs @ 105°C | 15000 Hrs @ 105°C | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C | 15000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 88 mA @ 120 Hz | 88 mA @ 120 Hz | 66 mA @ 120 Hz | 76 mA @ 120 Hz | 28 mA @ 120 Hz | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 167.2 mA @ 100 kHz | 167.2 mA @ 100 kHz | 125.4 mA @ 100 kHz | 136.8 mA @ 100 kHz | 56 mA @ 100 kHz | - |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) | 0.866" (22.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.531" (13.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
