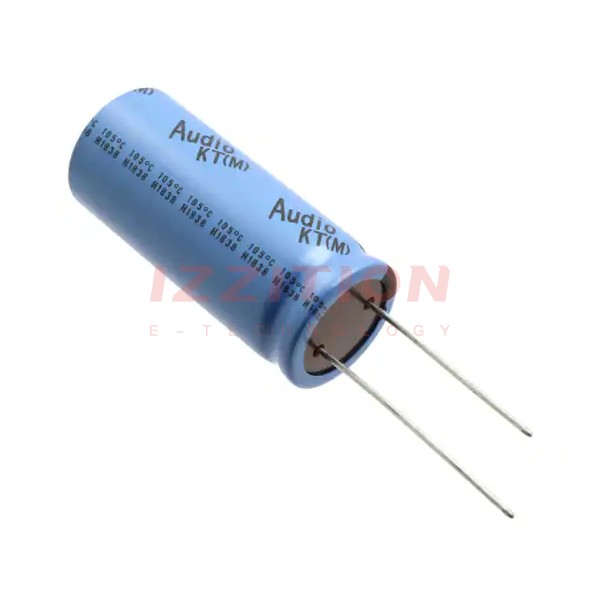

| Part Number | UKT1H682MRD | UKT1V682MRD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 6800 µF | 6800 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | Audio | Audio |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz | 2.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.875 A @ 10 kHz | 2.473 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 2.028" (51.50mm) | 1.634" (41.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
