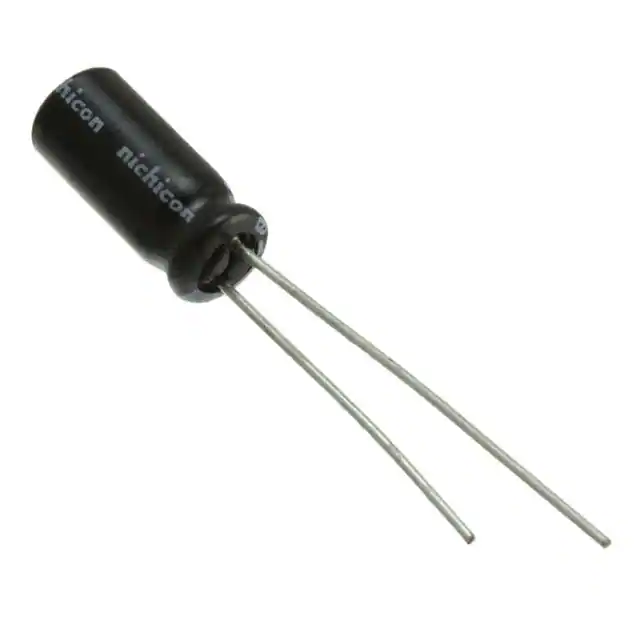

| Part Number | UKL1V100KDDANATA | UKL1V150KDDANATA | UKL1V100KDDANATD | UKL1V100MDDANATA |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Not For New Designs | Active | Active |
| Capacitance | 10 µF | 15 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | 85 mA @ 120 Hz | - | - |
| Ripple Current @ High Frequency | 145 mA @ 100 kHz | 170 mA @ 10 kHz | 155 mA @ 100 kHz | 45 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | 0.197" (5.00mm) | - | - |
| Size / Dimension | - | 0.197" Dia (5.00mm) | - | - |
| Height - Seated (Max) | - | 0.472" (12.00mm) | - | - |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
