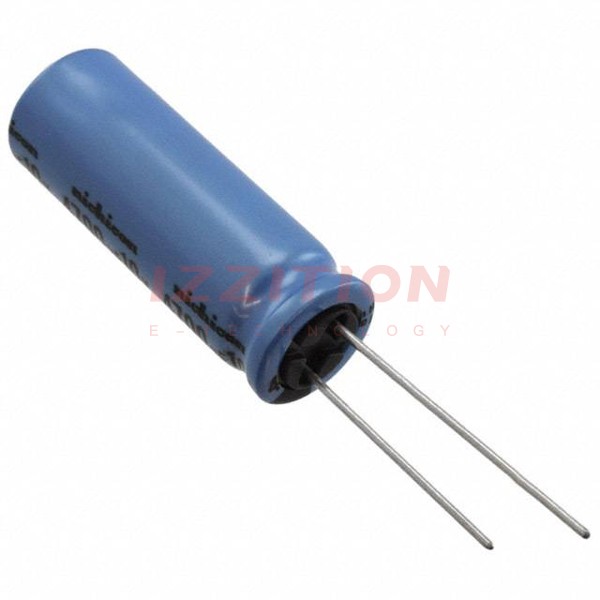

| Part Number | UKA1A472MHD | UKA1V472MHD | UKA1C472MHD | UKA1E472MHD |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 4700 µF | 4700 µF | 4700 µF | 4700 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 35 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz | 1.91 A @ 120 Hz | 1.48 A @ 120 Hz | 1.71 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.495 A @ 10 kHz | 2.1965 A @ 10 kHz | 1.702 A @ 10 kHz | 1.9665 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) | 1.299" (33.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
