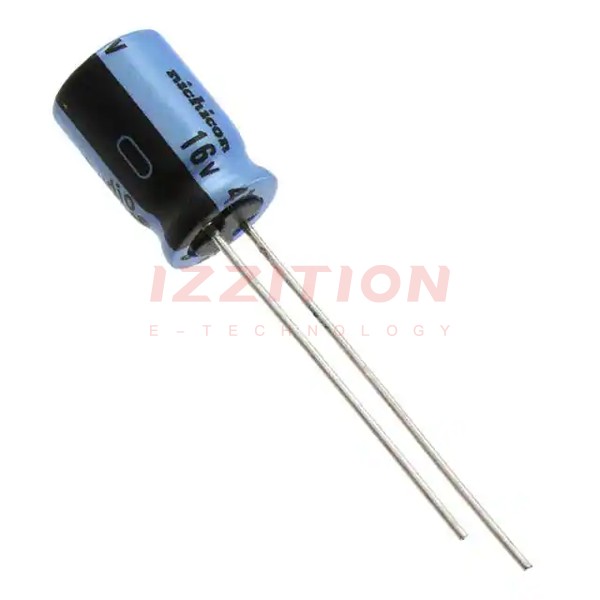

| Part Number | UKA1A471MPD1TD | UKA1V471MPD1TD | UKA1C471MPD1TD | UKA1E471MPD1TD |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 470 µF | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 35 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz | 460 mA @ 120 Hz | 315 mA @ 120 Hz | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 420 mA @ 10 kHz | - | - | 570 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.689" (17.50mm) | 0.512" (13.00mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
