Please send RFQ , we will respond immediately.

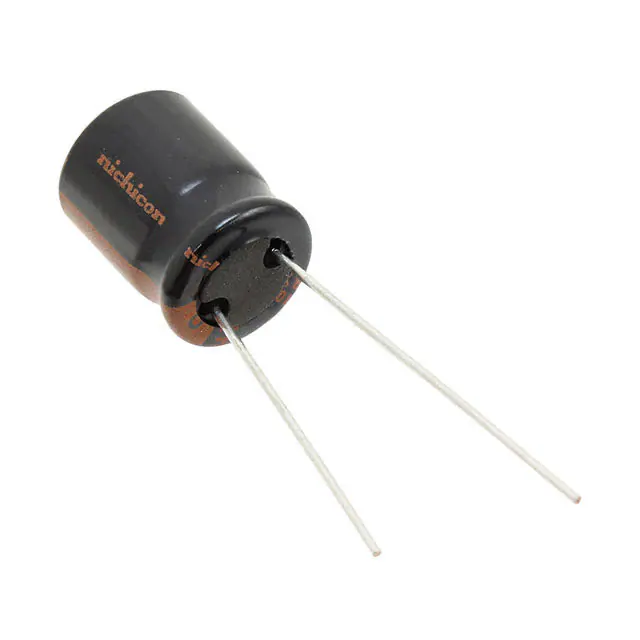

| Part Number | UHZ0J102MPM6 | UHZ0J182MPM6 | UHZ0J152MPM6 |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 µF | 1800 µF | 1500 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | - | - |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz | 2.88 A @ 100 kHz | 2.88 A @ 100 kHz |
| Impedance | 12 mOhms | 9 mOhms | 9 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
