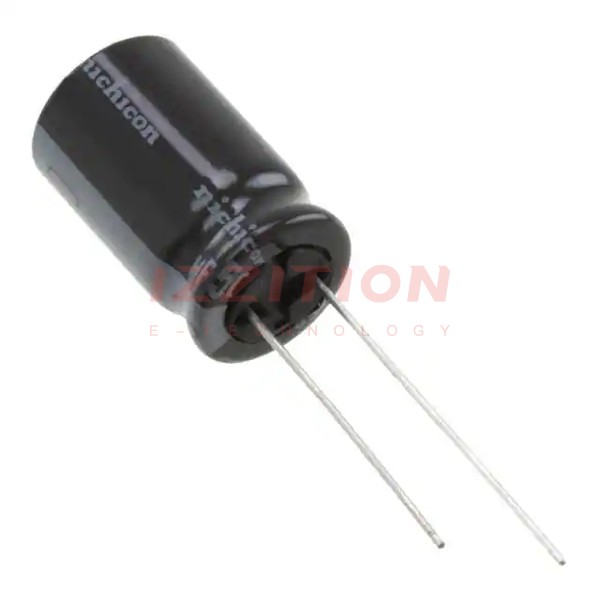

Nichicon-UHW1H471MHD6 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	470 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	10000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.15 A @ 120 Hz
Ripple Current @ High Frequency:	2.3 A @ 100 kHz
Impedance:	27 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.866" (22.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UHW1H471MHD6
