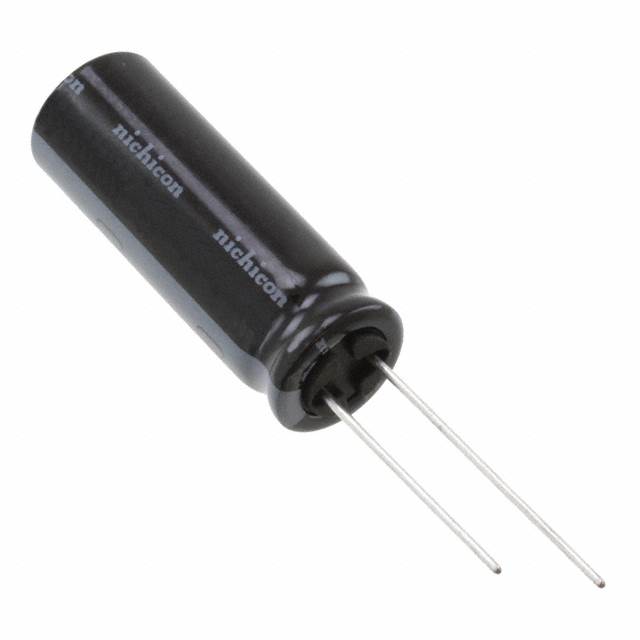

| Part Number | UHW1H152MHD | UHW1V152MHD | UHW1H152MHD6 | UHW1K152MHD | UHW1H182MHD | UHW1J152MHD | UHW1E152MHD | UHW1H102MHD | UHW1H122MHD |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 1500 µF | 1500 µF | 1500 µF | 1500 µF | 1800 µF | 1500 µF | 1500 µF | 1000 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 50 V | 80 V | 50 V | 63 V | 25 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.286 A @ 120 Hz | 2.145 A @ 120 Hz | 1.962 A @ 120 Hz | 2.106 A @ 120 Hz | 2.058 A @ 120 Hz | 1.86 A @ 120 Hz | 1.56 A @ 120 Hz | 2.1 A @ 120 Hz | 1.962 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.81 A @ 100 kHz | 3.575 A @ 100 kHz | 3.27 A @ 100 kHz | 3.51 A @ 100 kHz | 3.43 A @ 100 kHz | 3.1 A @ 100 kHz | 2.6 A @ 100 kHz | 3.5 A @ 100 kHz | 3.27 A @ 100 kHz |
| Impedance | 19 mOhms | 14 mOhms | 21 mOhms | 28 mOhms | 19 mOhms | 23 mOhms | 16 mOhms | 20 mOhms | 21 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) | 0.866" (22.00mm) | 1.063" (27.00mm) | 1.457" (37.00mm) | 1.319" (33.50mm) | 1.457" (37.00mm) | 0.866" (22.00mm) | 1.319" (33.50mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
