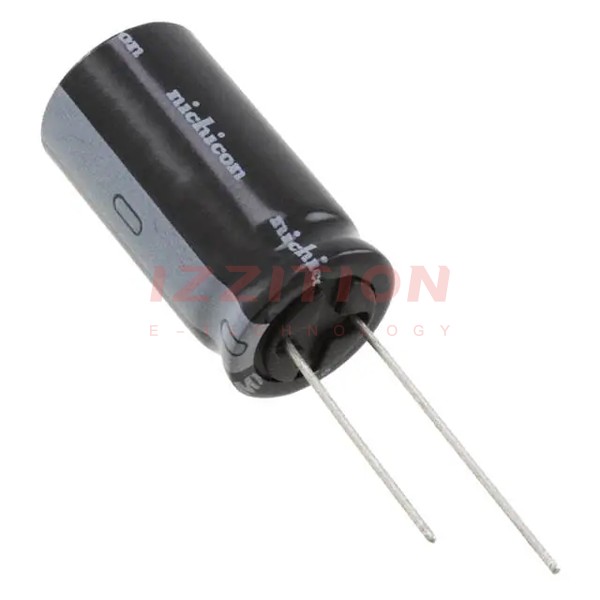

| Part Number | UHW1A822MHD | UHW1C822MHD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 8200 µF | 8200 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz | 3.36 A @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 100 kHz | 4.2 A @ 100 kHz |
| Impedance | 11 mOhms | 10 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) | 1.476" (37.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
