Nichicon-UHW0J182MPD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1800 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	10000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.2 A @ 120 Hz
Ripple Current @ High Frequency:	2 A @ 100 kHz
Impedance:	30 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.689" (17.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

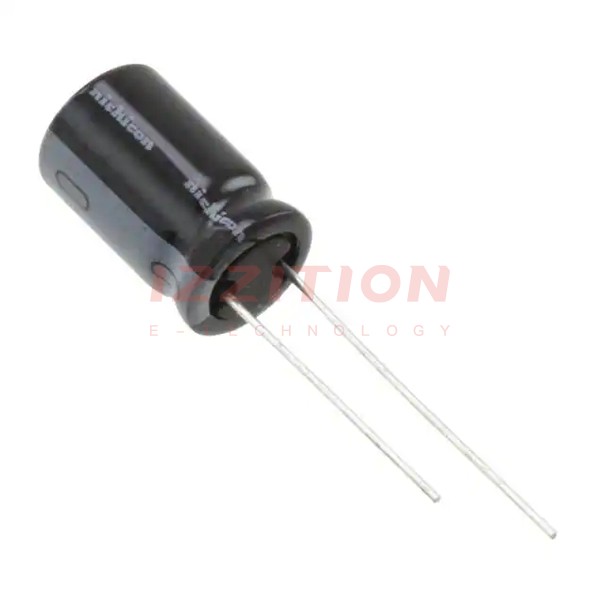

Nichicon UHW0J182MPD
