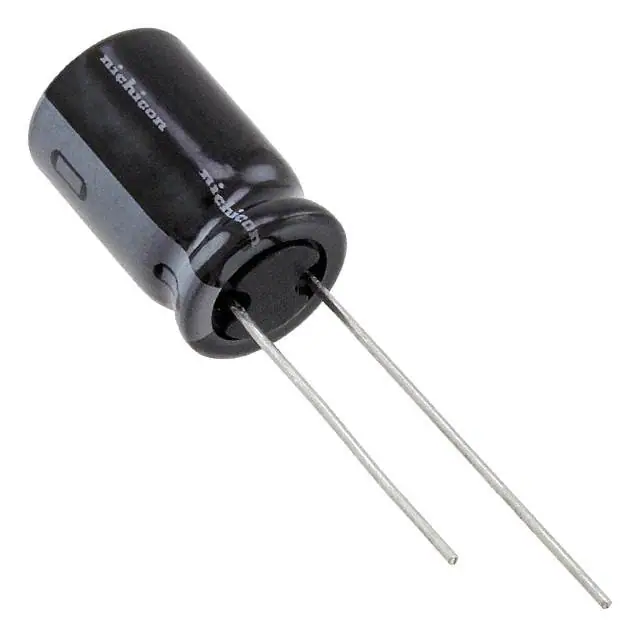

| Part Number | UHV1A122MPD1TD | UHV1C122MPD1TD | UHV1A152MPD1TD | UHV1A182MPD1TD | UHV1A222MPD1TD | UHV1A102MPD1TD |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 1200 µF | 1200 µF | 1500 µF | 1800 µF | 2200 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 10 V | 10 V | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C | 6000 Hrs @ 105°C | 6000 Hrs @ 105°C | 6000 Hrs @ 105°C | 6000 Hrs @ 105°C | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz | 1.158 A @ 120 Hz | 1.089 A @ 120 Hz | 1.296 A @ 120 Hz | - | 816 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz | 1.93 A @ 100 kHz | - | 2.16 A @ 100 kHz | 2.475 A @ 100 kHz | 1.36 A @ 100 kHz |
| Impedance | 30 mOhms | 19 mOhms | 30 mOhms | 19 mOhms | 17 mOhms | 43 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.866" (22.00mm) | 0.689" (17.50mm) | 0.866" (22.00mm) | 1.063" (27.00mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
