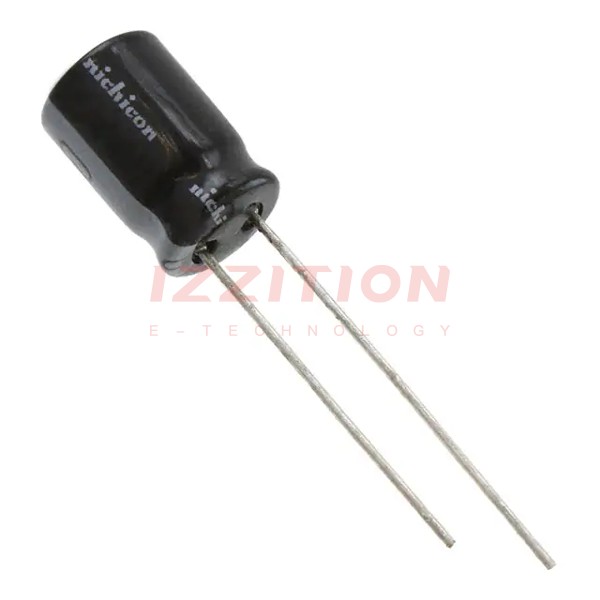

| Part Number | UHV0J152MPD1TA | UHV0J152MPD1TD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 1500 µF | 1500 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 930 mA @ 120 Hz | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 100 kHz | 1.55 A @ 100 kHz |
| Impedance | 31 mOhms | 31 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
