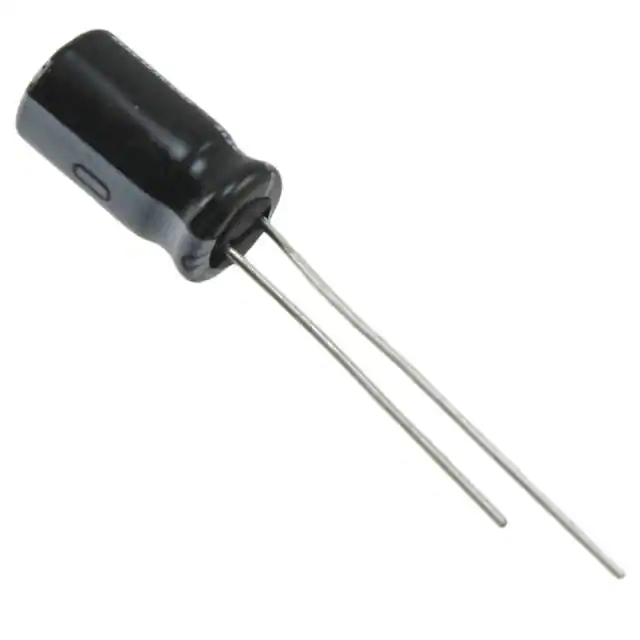

| Part Number | UHE1J330MED1TA | UHE1J330MED1TD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 69.3 mA @ 120 Hz | 69.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 126 mA @ 100 kHz | 126 mA @ 100 kHz |
| Impedance | 1.2 Ohms | 1.2 Ohms |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
