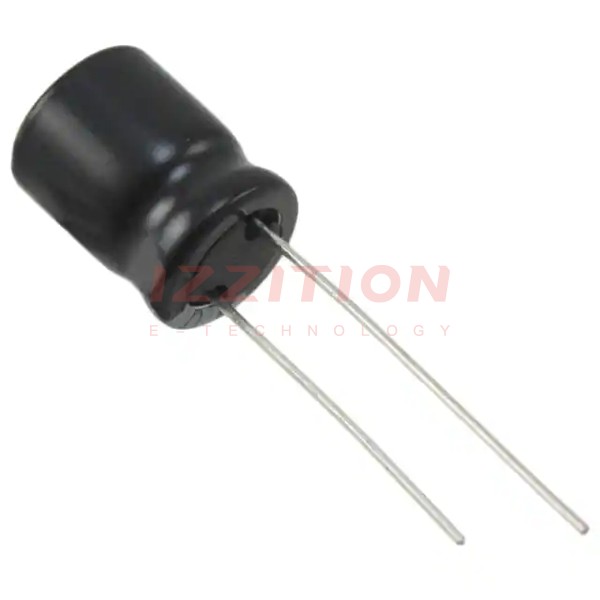

| Part Number | UHE1H122MHD6 | UHE1H182MHD6 | UHE1J122MHD6 | UHE1H222MHD6 | UHE1H122MHT6 | UHE1H102MHD6 | UHE1H122MHD |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs |
| Capacitance | 1200 µF | 1800 µF | 1200 µF | 2200 µF | 1200 µF | 1000 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 63 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.192 A @ 120 Hz | 2.908 A @ 120 Hz | 1.512 A @ 120 Hz | 2.944 A @ 120 Hz | 2.192 A @ 120 Hz | - | 2.408 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.74 A @ 100 kHz | 3.635 A @ 100 kHz | 1.89 A @ 100 kHz | 3.68 A @ 100 kHz | 2.74 A @ 100 kHz | 2.555 A @ 100 kHz | 3.01 A @ 100 kHz |
| Impedance | 26 mOhms | 21 mOhms | 40 mOhms | 17 mOhms | 26 mOhms | 25 mOhms | 22 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 1.240" (31.50mm) | 1.398" (35.50mm) | 1.398" (35.50mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 1.240" (31.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
