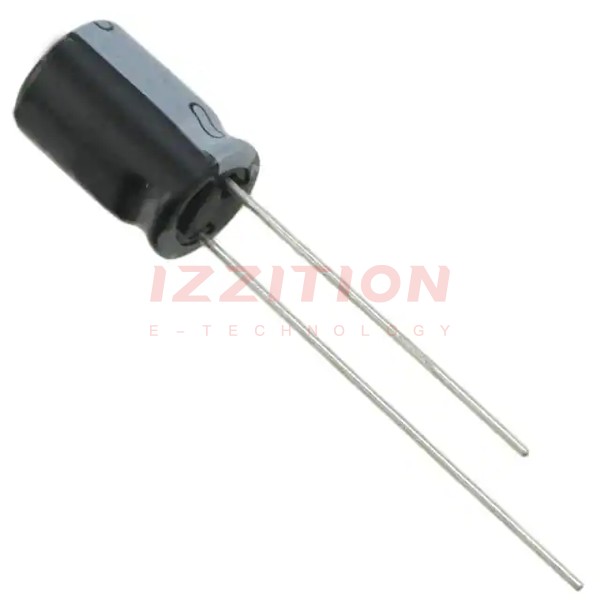

| Part Number | UHE1H121MPD1TD | UHE1H221MPD1TD | UHE1H151MPD1TD | UHE1J121MPD1TD | UHE1H181MPD1TD | UHE1H101MPD1TD | UHE1H121MPD1TA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 120 µF | 220 µF | 150 µF | 120 µF | 180 µF | 100 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 63 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 511 mA @ 120 Hz | 735 mA @ 120 Hz | 532 mA @ 120 Hz | 285.6 mA @ 120 Hz | 637 mA @ 120 Hz | 388.5 mA @ 120 Hz | 511 mA @ 120 Hz |
| Ripple Current @ High Frequency | 730 mA @ 100 kHz | 1.05 A @ 100 kHz | 760 mA @ 100 kHz | 408 mA @ 100 kHz | 910 mA @ 100 kHz | 555 mA @ 100 kHz | 730 mA @ 100 kHz |
| Impedance | 120 mOhms | 84 mOhms | 120 mOhms | 330 mOhms | 91 mOhms | 170 mOhms | 120 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.689" (17.50mm) | 0.551" (14.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.512" (13.00mm) | 0.650" (16.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
