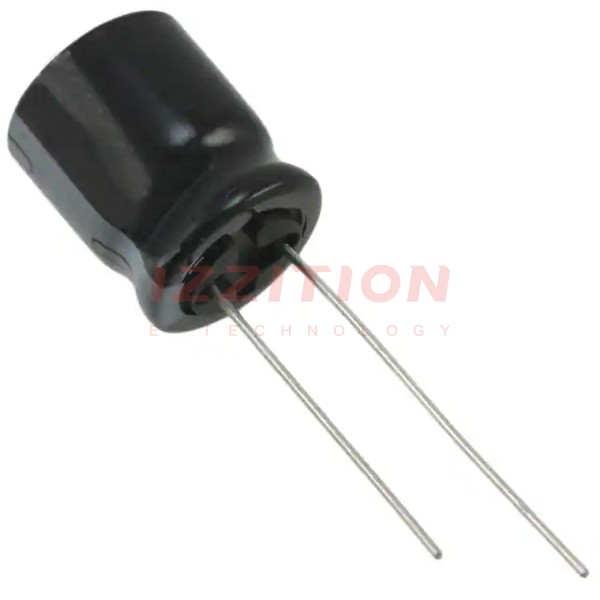

| Part Number | UHE1E272MHT | UHE1E272MHT6 | UHE1E472MHT | UHE1H272MHT | UHE1C272MHT | UHE1E222MHT | UHE1E272MHD |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Not For New Designs |
| Capacitance | 2700 µF | 2700 µF | 4700 µF | 2700 µF | 2700 µF | 2200 µF | 2700 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 50 V | 16 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.68 A @ 120 Hz | 2.344 A @ 120 Hz | 3.264 A @ 120 Hz | 3.04 A @ 120 Hz | 2.12 A @ 120 Hz | 2.304 A @ 120 Hz | 2.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.35 A @ 100 kHz | 2.93 A @ 100 kHz | 4.08 A @ 100 kHz | 3.8 A @ 100 kHz | 2.65 A @ 100 kHz | 2.88 A @ 100 kHz | 3.35 A @ 100 kHz |
| Impedance | 17 mOhms | 21 mOhms | 13 mOhms | 14 mOhms | 24 mOhms | 20 mOhms | 17 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.575" (40.00mm) | 0.984" (25.00mm) | 1.575" (40.00mm) | 1.575" (40.00mm) | 1.240" (31.50mm) | 1.398" (35.50mm) | 1.575" (40.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
