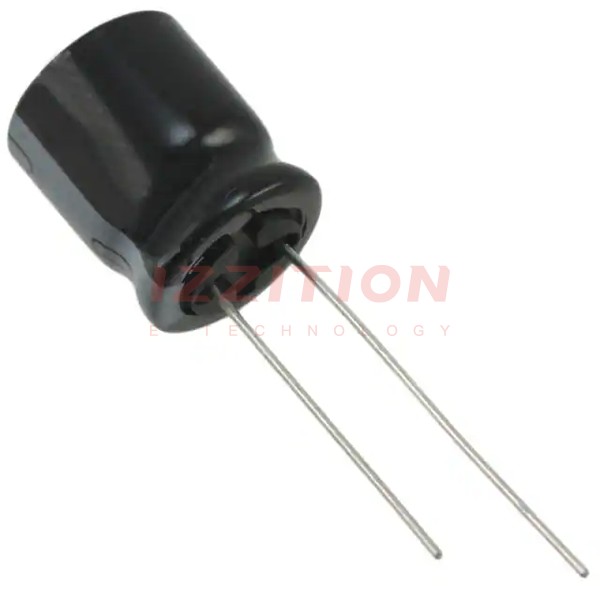

| Part Number | UHE1E222MHD | UHE1E222MHD6 | UHE1E272MHD | UHE1E222MHT | UHE1C222MHD | UHE1E122MHD |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs |
| Capacitance | 2200 µF | 2200 µF | 2700 µF | 2200 µF | 2200 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.304 A @ 120 Hz | 2.288 A @ 120 Hz | 2.68 A @ 120 Hz | 2.304 A @ 120 Hz | 2.304 A @ 120 Hz | 1.768 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.88 A @ 100 kHz | 2.86 A @ 100 kHz | 3.35 A @ 100 kHz | 2.88 A @ 100 kHz | 2.23 A @ 100 kHz | 2.21 A @ 100 kHz |
| Impedance | 20 mOhms | 26 mOhms | 17 mOhms | 20 mOhms | 27 mOhms | 43 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) | 0.787" (20.00mm) | 1.575" (40.00mm) | 1.398" (35.50mm) | 0.984" (25.00mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
