Please send RFQ , we will respond immediately.

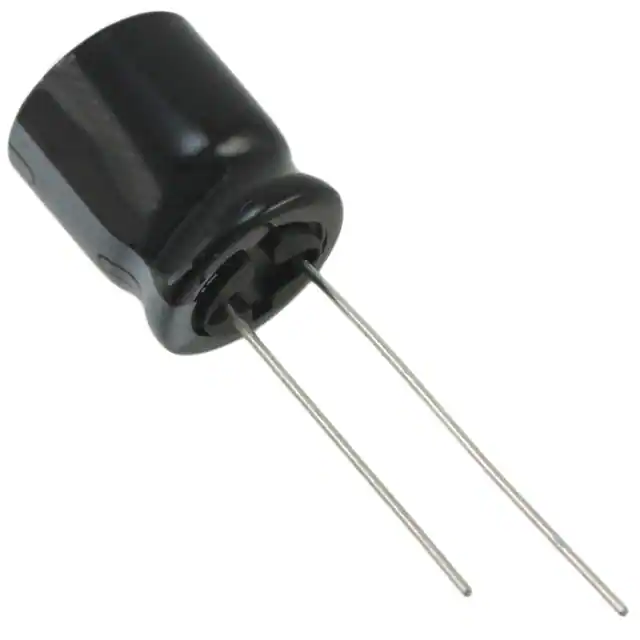

| Part Number | UHE1C272MHT | UHE1C272MHT6 | UHE1C472MHT | UHE1E272MHT | UHE1A272MHT | UHE1C222MHT | UHE1C272MHD |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Not For New Designs |
| Capacitance | 2700 µF | 2700 µF | 4700 µF | 2700 µF | 2700 µF | 2200 µF | 2700 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 25 V | 10 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 8000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.12 A @ 120 Hz | 2.024 A @ 120 Hz | 2.76 A @ 120 Hz | 2.68 A @ 120 Hz | 1.768 A @ 120 Hz | 1.784 A @ 120 Hz | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.65 A @ 100 kHz | 2.53 A @ 100 kHz | 3.45 A @ 100 kHz | 3.35 A @ 100 kHz | 2.21 A @ 100 kHz | 2.23 A @ 100 kHz | 2.65 A @ 100 kHz |
| Impedance | 24 mOhms | 27 mOhms | 17 mOhms | 17 mOhms | 43 mOhms | 27 mOhms | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) | 0.787" (20.00mm) | 1.240" (31.50mm) | 1.575" (40.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 1.240" (31.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
