Nichicon-UHE1C152MHD3TN - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1500 µF
Tolerance:	±20%
Voltage - Rated:	16 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	10000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.552 A @ 120 Hz
Ripple Current @ High Frequency:	1.94 A @ 100 kHz
Impedance:	42 mOhms
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	0.650" (16.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

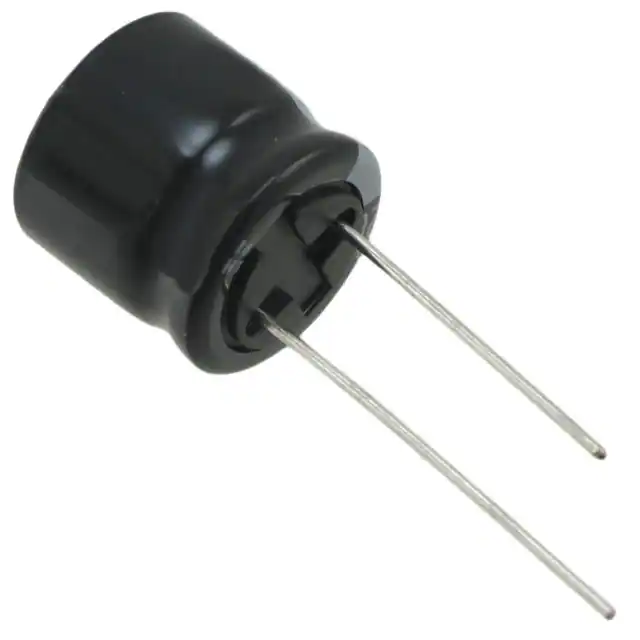

Nichicon UHE1C152MHD3TN
