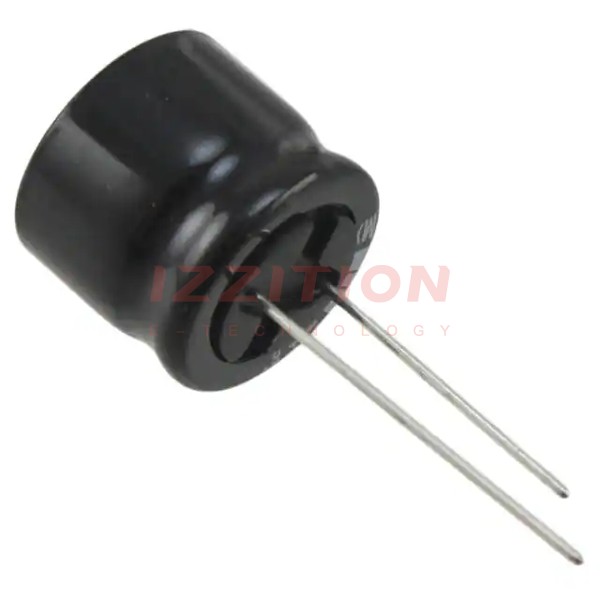

| Part Number | UHE0J392MHD6 | UHE0J392MHT6 | UHE0J392MHD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Obsolete | Not For New Designs |
| Capacitance | 3900 µF | 3900 µF | 3900 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.768 A @ 120 Hz | 1.768 A @ 120 Hz | 1.784 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz | 2.21 A @ 100 kHz | 2.23 A @ 100 kHz |
| Impedance | 43 mOhms | 43 mOhms | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
