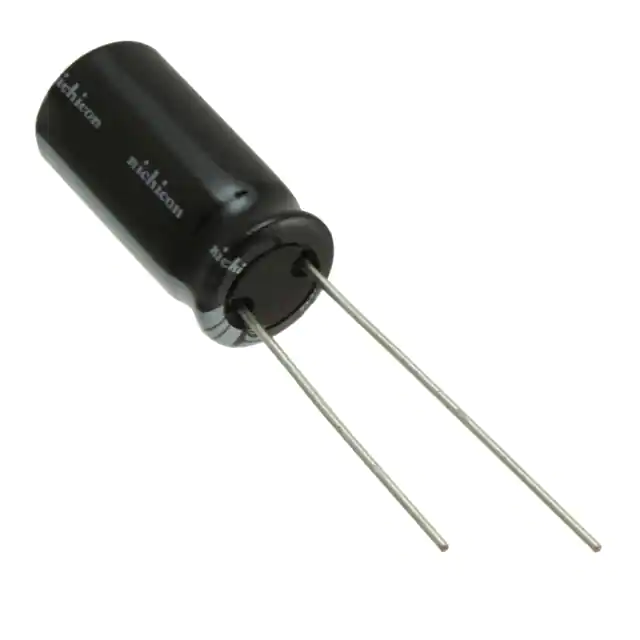

| Part Number | UHD1H221MPD1TD | UHD1V221MPD1TD | UHD1H271MPD1TD | UHD1E221MPD1TD | UHD1H121MPD1TD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 220 µF | 220 µF | 270 µF | 220 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 50 V | 25 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C | 3000 Hrs @ 105°C | 4000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 959 mA @ 120 Hz | 696.5 mA @ 120 Hz | 1.106 A @ 120 Hz | 532 mA @ 120 Hz | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.37 A @ 100 kHz | 995 mA @ 100 kHz | 1.58 A @ 100 kHz | 760 mA @ 100 kHz | 950 mA @ 100 kHz |
| Impedance | 42 mOhms | 56 mOhms | 30 mOhms | 72 mOhms | 61 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.650" (16.50mm) | 0.866" (22.00mm) | 0.512" (13.00mm) | 0.650" (16.50mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
