Nichicon-UHD1C560MDD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	56 µF
Tolerance:	±20%
Voltage - Rated:	16 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	175 mA @ 120 Hz
Ripple Current @ High Frequency:	250 mA @ 100 kHz
Impedance:	300 mOhms
Lead Spacing:	0.079" (2.00mm)
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.492" (12.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

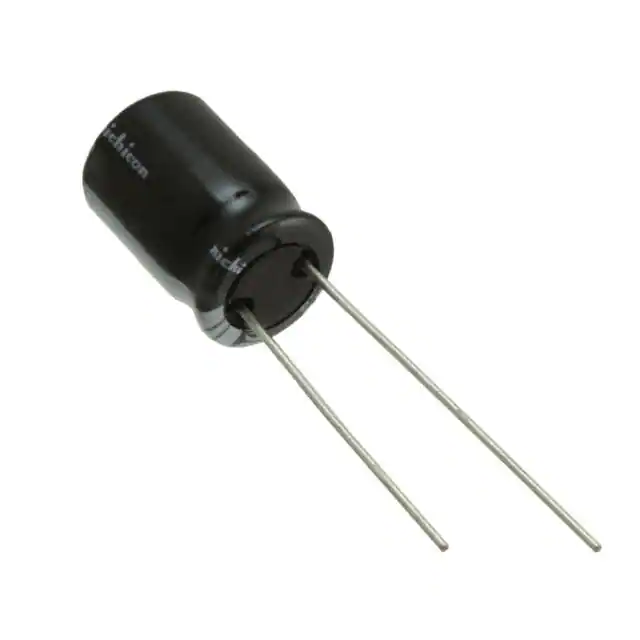

Nichicon UHD1C560MDD
