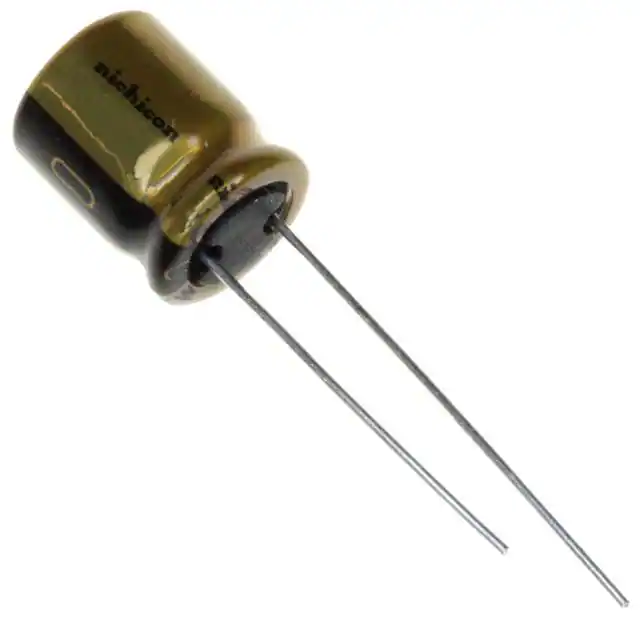

| Part Number | UFW1V221MPD | UFW1H221MPD | UFW1J221MPD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 50 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz | 410 mA @ 120 Hz | 470 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 10 kHz | - | - |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.630" (16.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
