Nichicon-UFG2A100MPM1TD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	10 µF
Tolerance:	±20%
Voltage - Rated:	100 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	Audio
Ripple Current @ Low Frequency:	65 mA @ 120 Hz
Ripple Current @ High Frequency:	130 mA @ 10 kHz
Impedance:	-
Lead Spacing:	0.138" (3.50mm)
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.512" (13.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

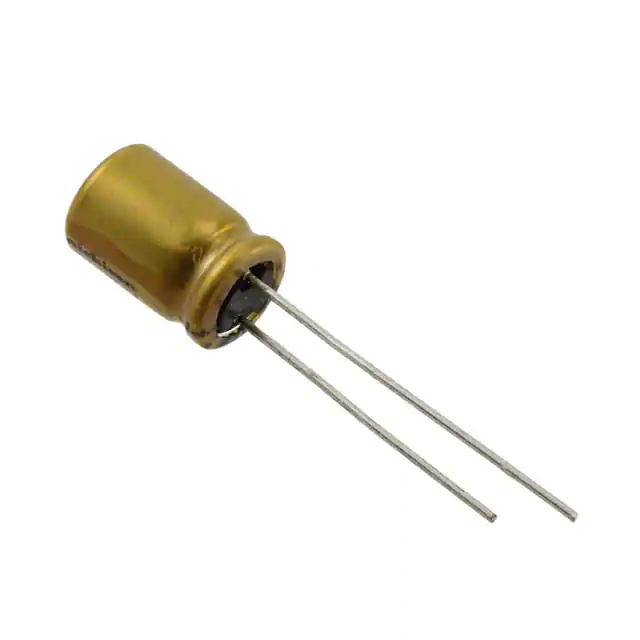

Nichicon UFG2A100MPM1TD
