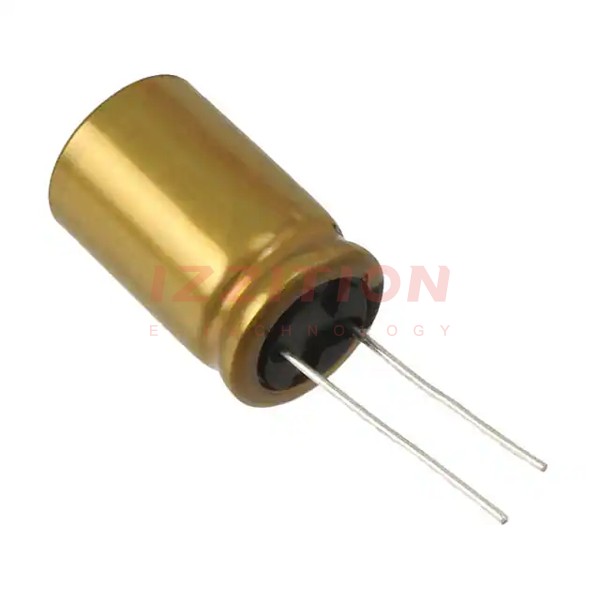

| Part Number | UFG1V102MHM1TN | UFG1V102MHM1TO | UFG1E102MHM1TN |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Active | Not For New Designs |
| Capacitance | 1000 µF | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 1.06 A @ 120 Hz | - | 854 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | - | 982.1 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.063" (27.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
