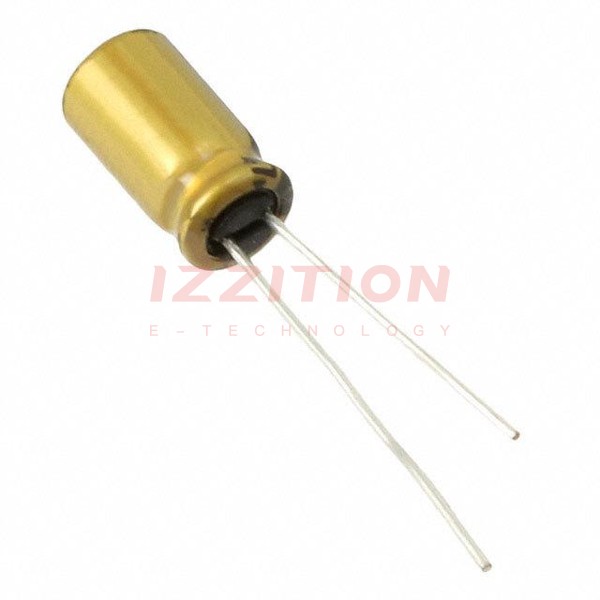

| Part Number | UFG1C470MEM | UFG1E470MEM |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | Audio | Audio |
| Ripple Current @ Low Frequency | 74 mA @ 120 Hz | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 148 mA @ 10 kHz | 170 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
