UFG1A471MPM1TD
  • Share:

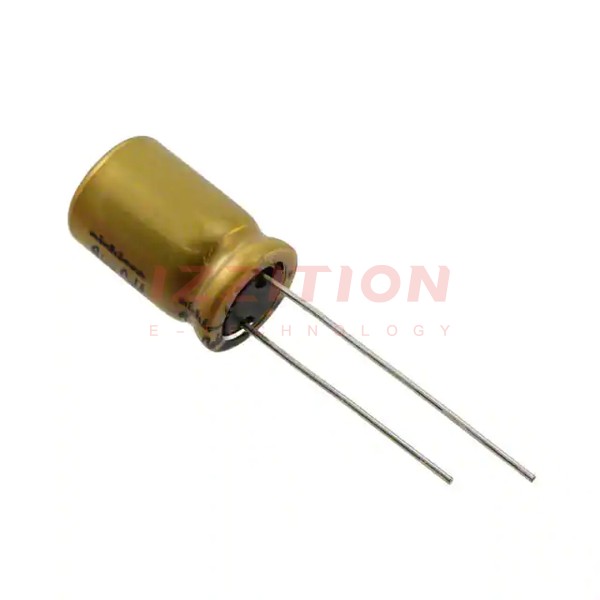

Nichicon UFG1A471MPM1TD

Manufacturer No:
UFG1A471MPM1TD
Manufacturer:
Nichicon
Package:
Cut Tape (CT)
Datasheet:
UFG1A471MPM1TD Datasheet
ECAD Model:
-
Description:
CAP ALUM 470UF 20% 10V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:470 µF
Tolerance:±20%
Voltage - Rated:10 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:1000 Hrs @ 85°C
Operating Temperature:-40°C ~ 85°C
Polarization:Polar
Ratings:-
Applications:Audio
Ripple Current @ Low Frequency:330 mA @ 120 Hz
Ripple Current @ High Frequency:-
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.689" (17.50mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$1.10
262

Please send RFQ , we will respond immediately.

Similar Products

Part Number UFG1A471MPM1TD UFG1C471MPM1TD
Manufacturer Nichicon Nichicon
Product Status Not For New Designs Not For New Designs
Capacitance 470 µF 470 µF
Tolerance ±20% ±20%
Voltage - Rated 10 V 16 V
ESR (Equivalent Series Resistance) - -
Lifetime @ Temp. 1000 Hrs @ 85°C 1000 Hrs @ 85°C
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C
Polarization Polar Polar
Ratings - -
Applications Audio Audio
Ripple Current @ Low Frequency 330 mA @ 120 Hz 406 mA @ 120 Hz
Ripple Current @ High Frequency - -
Impedance - -
Lead Spacing 0.197" (5.00mm) 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm) 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm) 0.866" (22.00mm)
Surface Mount Land Size - -
Mounting Type Through Hole Through Hole
Package / Case Radial, Can Radial, Can
