Please send RFQ , we will respond immediately.

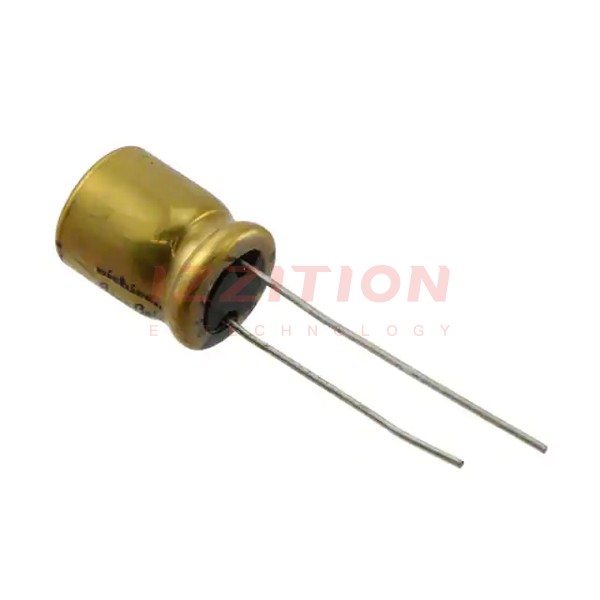

| Part Number | UFG1A331MPM | UFG1C331MPM | UFG1E331MPM |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 247 mA @ 120 Hz | 309 mA @ 120 Hz | 351 mA @ 120 Hz |
| Ripple Current @ High Frequency | 370.5 mA @ 10 kHz | 463.5 mA @ 10 kHz | - |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.689" (17.50mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
