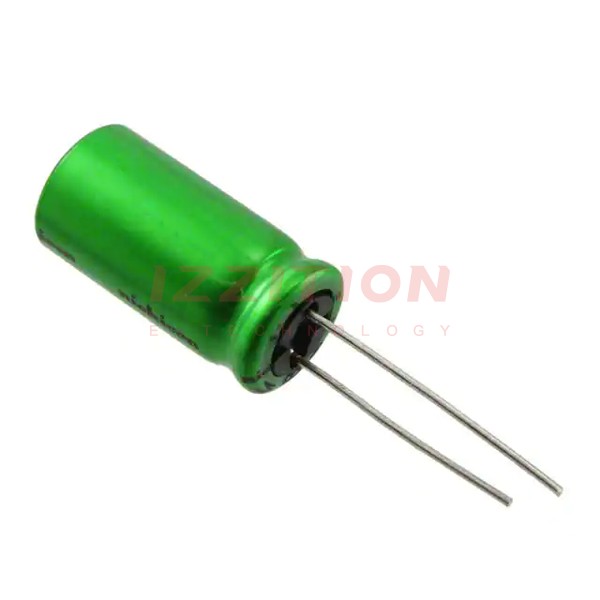

| Part Number | UES1C471MHM | UES1E471MHM | UES1V471MHM | UES1A471MHM |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 470 µF | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V | 35 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Bi-Polar | Bi-Polar | Bi-Polar | Bi-Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | - | - | - | - |
| Ripple Current @ High Frequency | - | - | - | - |
| Impedance | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) | 1.043" (26.50mm) | 1.043" (26.50mm) | 0.846" (21.50mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
