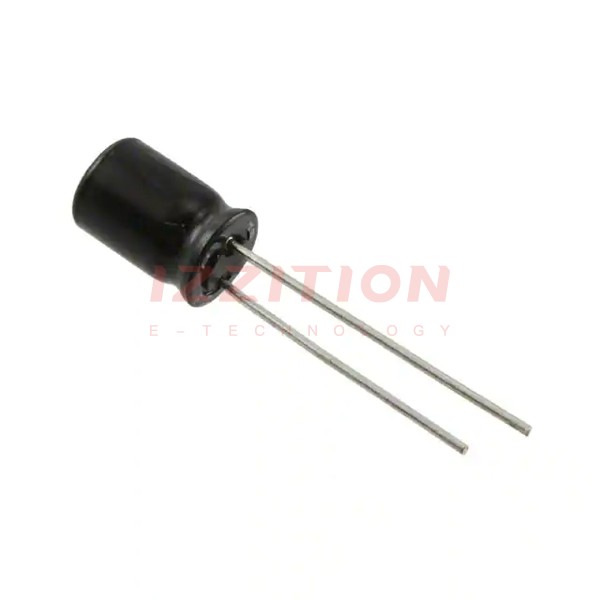

Nichicon-UDB1H1R5MPM - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1.5 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Bi-Polar
Ratings:	-
Applications:	Audio
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	245 mA @ 13 kHz
Impedance:	-
Lead Spacing:	0.138" (3.50mm)
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.492" (12.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UDB1H1R5MPM
