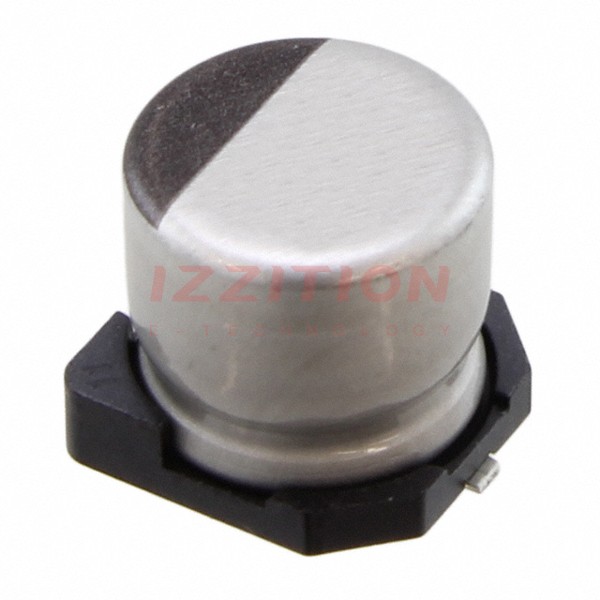

| Part Number | UCZ1V100MCL1GS | UCZ1V101MCL1GS | UCZ1H100MCL1GS | UCZ1J100MCL1GS | UCZ1K100MCL1GS |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 10 µF | 100 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 50 V | 63 V | 80 V |
| ESR (Equivalent Series Resistance) | 1.6Ohm | 200mOhm | 2.8Ohm | 2Ohm | 750mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 3000 Hrs @ 125°C | 1000 Hrs @ 125°C | 2000 Hrs @ 125°C | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 34.5 mA @ 120 Hz | 135 mA @ 120 Hz | 25.5 mA @ 120 Hz | 30 mA @ 120 Hz | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 270 mA @ 100 kHz | 51 mA @ 100 kHz | 60 mA @ 100 kHz | - |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.394" (10.00mm) | 0.240" (6.10mm) | 0.323" (8.20mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
