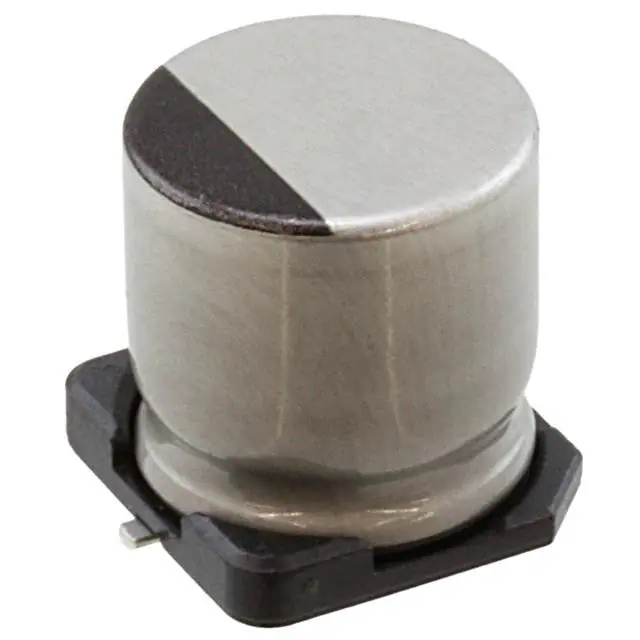

Nichicon UCZ1K220MCL1GS

Manufacturer No:
UCZ1K220MCL1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
UCZ1K220MCL1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM 22UF 20% 80V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:22 µF
Tolerance:±20%
Voltage - Rated:80 V
ESR (Equivalent Series Resistance):550mOhm
Lifetime @ Temp.:3000 Hrs @ 125°C
Operating Temperature:-40°C ~ 125°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:57.5 mA @ 120 Hz
Ripple Current @ High Frequency:115 mA @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.413" (10.50mm)
Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$1.14
713

Please send RFQ , we will respond immediately.

Similar Products

Part Number UCZ1K220MCL1GS UCZ1V220MCL1GS   UCZ1K220MCL6GS   UCZ1H220MCL1GS   UCZ1J220MCL1GS
Manufacturer Nichicon Nichicon Nichicon Nichicon Nichicon
Product Status Not For New Designs Not For New Designs Not For New Designs Not For New Designs Not For New Designs
Capacitance 22 µF 22 µF 22 µF 22 µF 22 µF
Tolerance ±20% ±20% ±20% ±20% ±20%
Voltage - Rated 80 V 35 V 80 V 50 V 63 V
ESR (Equivalent Series Resistance) 550mOhm 1.6Ohm 750mOhm 500mOhm 700mOhm
Lifetime @ Temp. 3000 Hrs @ 125°C 1000 Hrs @ 125°C 3000 Hrs @ 125°C 2000 Hrs @ 125°C 3000 Hrs @ 125°C
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Polarization Polar Polar Polar Polar Polar
Ratings - - - - -
Applications General Purpose General Purpose General Purpose General Purpose General Purpose
Ripple Current @ Low Frequency 57.5 mA @ 120 Hz 34.5 mA @ 120 Hz 35 mA @ 120 Hz 98.5 mA @ 120 Hz 50 mA @ 120 Hz
Ripple Current @ High Frequency 115 mA @ 100 kHz - - 197 mA @ 100 kHz 100 mA @ 100 kHz
Impedance - - - - -
Lead Spacing - - - - -
Size / Dimension 0.394" Dia (10.00mm) 0.248" Dia (6.30mm) 0.315" Dia (8.00mm) 0.248" Dia (6.30mm) 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm) 0.248" (6.30mm) 0.413" (10.50mm) 0.323" (8.20mm) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm) 0.260" L x 0.260" W (6.60mm x 6.60mm) 0.327" L x 0.327" W (8.30mm x 8.30mm) 0.260" L x 0.260" W (6.60mm x 6.60mm) 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Radial, Can - SMD Radial, Can - SMD Radial, Can - SMD Radial, Can - SMD Radial, Can - SMD
