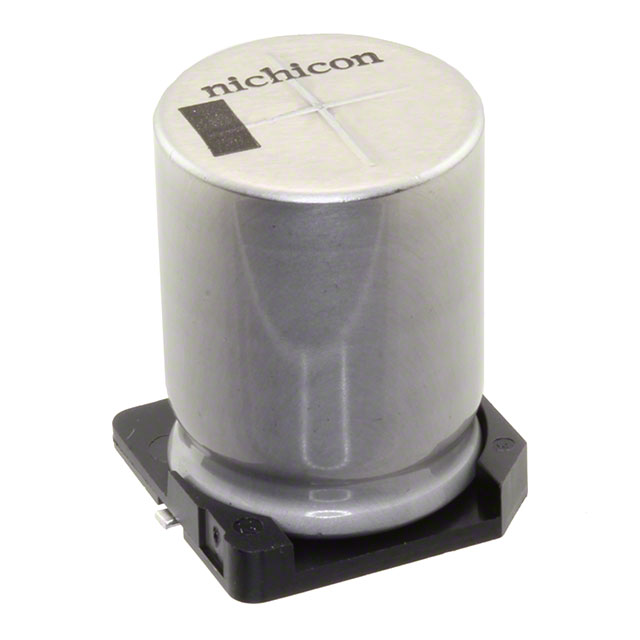

| Part Number | UCZ1J561MNQ1MS | UCZ1V561MNQ1MS | UCZ1J561MNS1MS | UCZ1H561MNQ1MS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 35 V | 63 V | 50 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100kHz | 60mOhm @ 100kHz | 70mOhm @ 100kHz | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 125°C | 3000 Hrs @ 125°C | 4000 Hrs @ 125°C | 3500 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | AEC-Q200 | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.25 A @ 120 Hz | 850 mA @ 120 Hz | 1.25 A @ 120 Hz | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz | 1.7 A @ 100 kHz | 2.5 A @ 100 kHz | 2 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.886" (22.50mm) | 0.571" (14.50mm) | 0.886" (22.50mm) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
