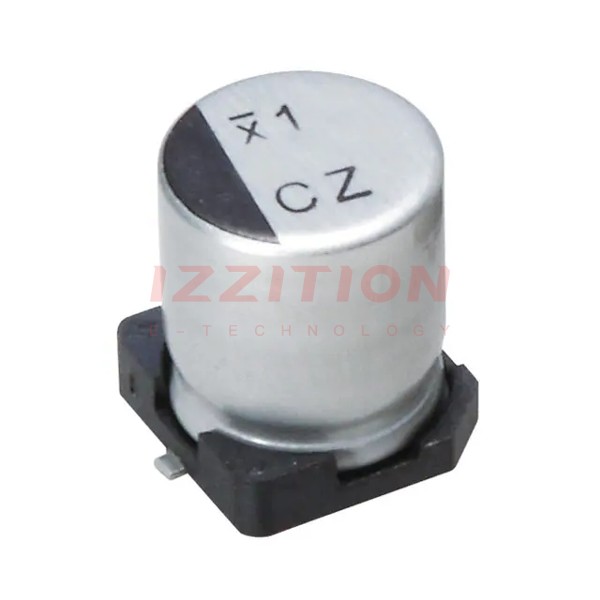

| Part Number | UCZ1H470MCL1GS | UCZ1H470MCL6GS | UCZ1V470MCL1GS | UCZ1J470MCL1GS | UCZ1K470MCL1GS | UCZ1C470MCL1GS |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 35 V | 63 V | 80 V | 16 V |
| ESR (Equivalent Series Resistance) | 250mOhm | 500mOhm | 200mOhm | 500mOhm | 550mOhm | 1.6Ohm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C | 2000 Hrs @ 125°C | 3000 Hrs @ 125°C | 3000 Hrs @ 125°C | 3000 Hrs @ 125°C | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz | 98.5 mA @ 120 Hz | 135 mA @ 120 Hz | 85 mA @ 120 Hz | 57.5 mA @ 120 Hz | 34.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz | 197 mA @ 100 kHz | 270 mA @ 100 kHz | 170 mA @ 100 kHz | 115 mA @ 100 kHz | - |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.323" (8.20mm) | 0.394" (10.00mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
