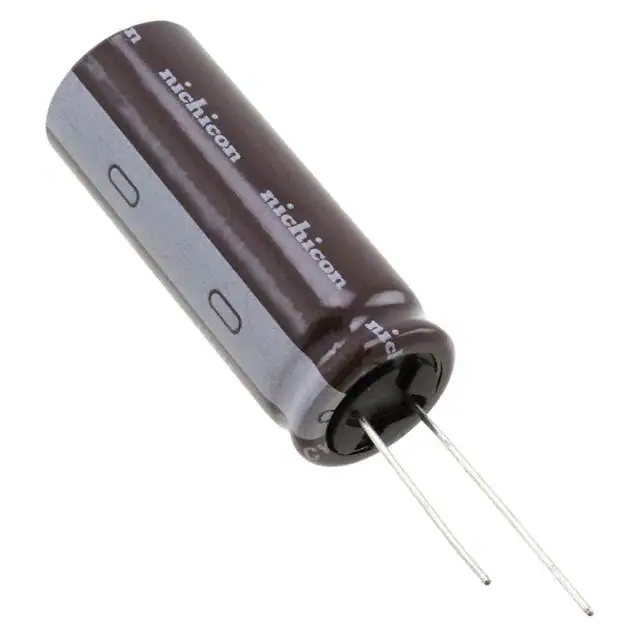

| Part Number | UCYW6121MHD6 | UCYW6101MHD6 | UCYW6121MHD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 120 µF | 100 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 420 V | 420 V | 420 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 945 mA @ 120 Hz | 835 mA @ 120 Hz | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz | 1.67 A @ 100 kHz | 1.86 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.870" (47.50mm) | 1.457" (37.00mm) | 1.634" (41.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
