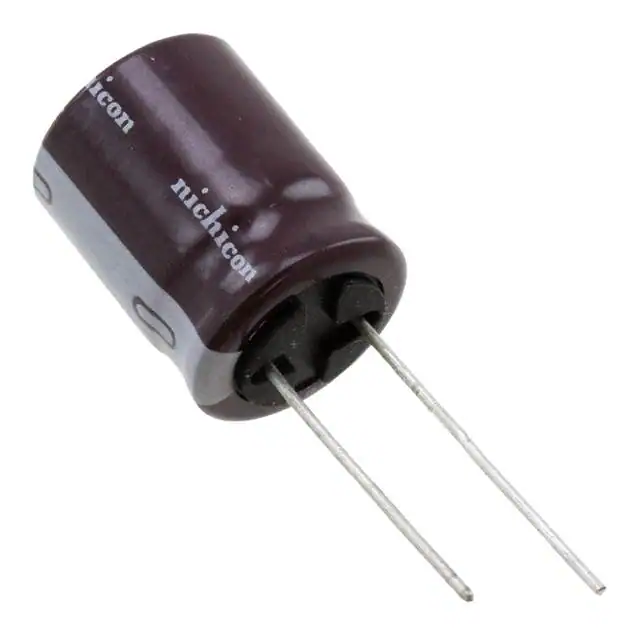

| Part Number | UCY2V330MHD3TN | UCY2W330MHD3TN | UCY2G330MHD3TN | UCY2H330MHD3TN |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 450 V | 400 V | 500 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz | 385 mA @ 120 Hz | 450 mA @ 120 Hz | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz | 770 mA @ 100 kHz | 900 mA @ 100 kHz | 700 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) | 1.043" (26.50mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
