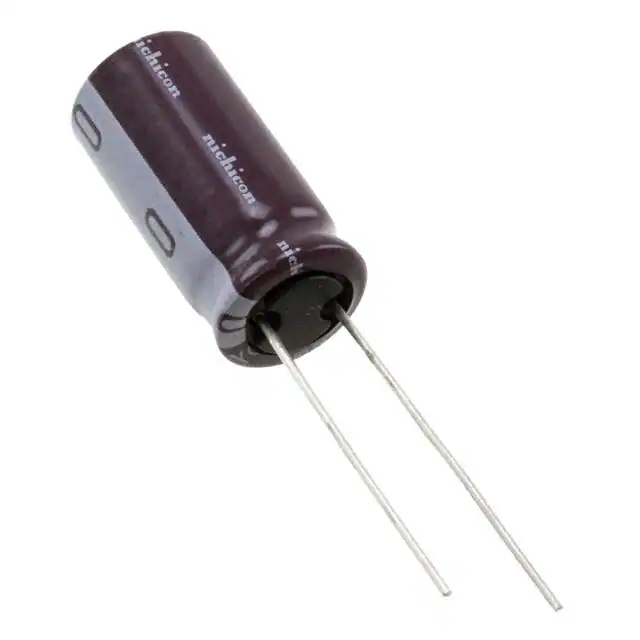

| Part Number | UCY2E270MPD1TD | UCY2D270MPD1TD | UCY2E220MPD1TD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 27 µF | 27 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 200 V | 250 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 255 mA @ 120 Hz | 235 mA @ 120 Hz | 225 mA @ 120 Hz |
| Ripple Current @ High Frequency | 510 mA @ 100 kHz | 470 mA @ 100 kHz | 450 mA @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
