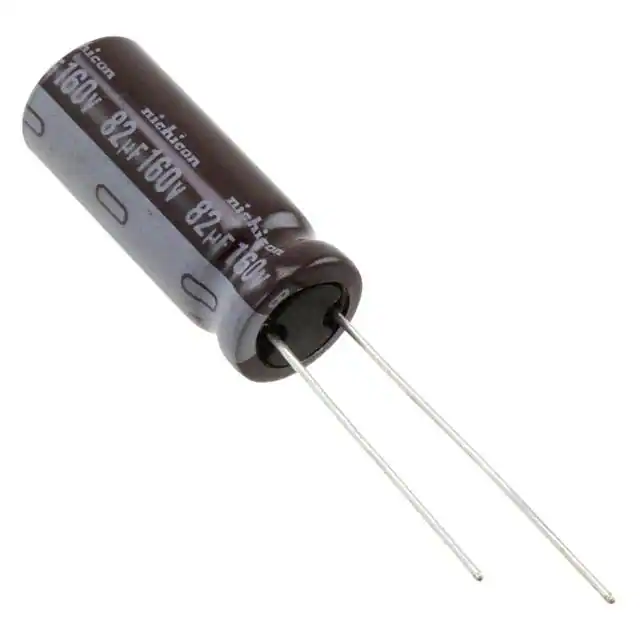

| Part Number | UCY2C820MPD9 | UCY2C820MPD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 82 µF | 82 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 160 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 455 mA @ 120 Hz | 534 mA @ 120 Hz |
| Ripple Current @ High Frequency | 910 mA @ 100 kHz | 1.068 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) | 1.299" (33.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
