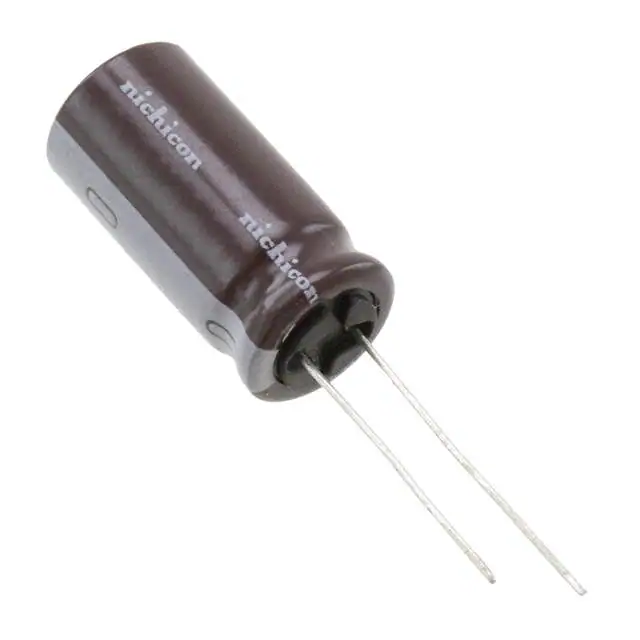

Nichicon-UCY2C151MHD9TO - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	150 µF
Tolerance:	±20%
Voltage - Rated:	160 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	12000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	760 mA @ 120 Hz
Ripple Current @ High Frequency:	1.52 A @ 100 kHz
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	1.043" (26.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UCY2C151MHD9TO
