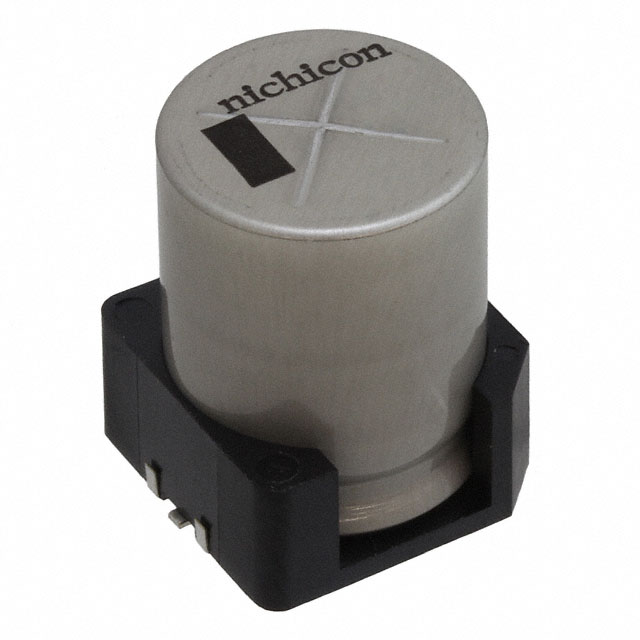

| Part Number | UCX1V152MNS6ZD | UCX1V152MNS1ZD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 1500 µF | 1500 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | 40mOhm | 50mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C | -40°C ~ 135°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz | 1.4 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
