Nichicon-UCX1H391MNS1ZD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	390 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	90mOhm
Lifetime @ Temp.:	2000 Hrs @ 135°C
Operating Temperature:	-40°C ~ 135°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	375 mA @ 120 Hz
Ripple Current @ High Frequency:	750 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.551" (14.00mm)
Surface Mount Land Size:	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

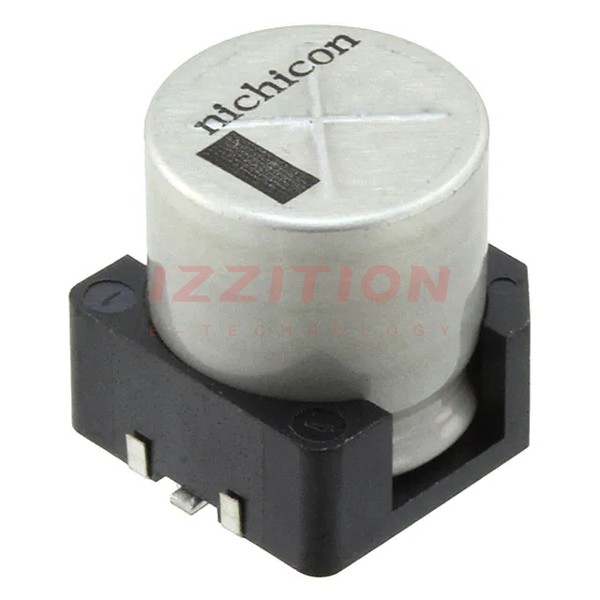

Nichicon UCX1H391MNS1ZD
