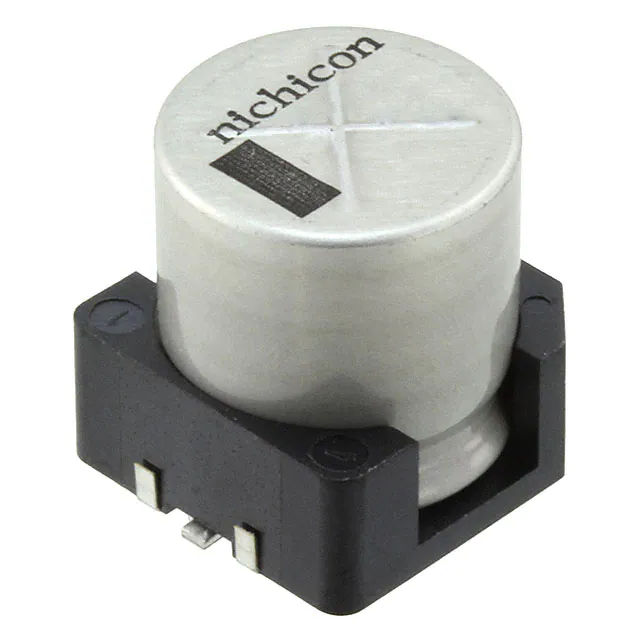

| Part Number | UCX1E102MNS1ZD | UCX1E122MNS1ZD | UCX1E152MNS1ZD | UCX1E182MNS1ZD | UCX1H102MNS1ZD | UCX1V102MNS1ZD |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 µF | 1200 µF | 1500 µF | 1800 µF | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 50 V | 35 V |
| ESR (Equivalent Series Resistance) | 70mOhm | 50mOhm | 50mOhm | 50mOhm | 50mOhm | 50mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C | -40°C ~ 135°C | -40°C ~ 135°C | -40°C ~ 135°C | -40°C ~ 135°C | -40°C ~ 135°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz | 600 mA @ 120 Hz | 600 mA @ 120 Hz | 600 mA @ 120 Hz | 800 mA @ 120 Hz | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz | 1.2 A @ 100 kHz | 1.2 A @ 100 kHz | 1.2 A @ 100 kHz | 1.6 A @ 100 kHz | 1.2 A @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.866" (22.00mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
