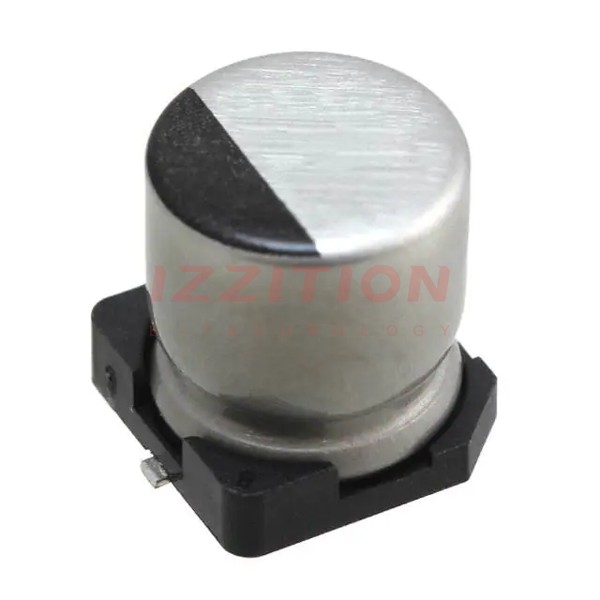

| Part Number | UCW1C101MCL1GS | UCW1E101MCL1GS | UCW1C151MCL1GS | UCX1C101MCL1GS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Not For New Designs |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | 200mOhm |
| Lifetime @ Temp. | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 2000 Hrs @ 135°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -40°C ~ 135°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz | 115 mA @ 120 Hz | 115 mA @ 120 Hz | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz | 230 mA @ 100 kHz | 230 mA @ 100 kHz | 270 mA @ 100 kHz |
| Impedance | 1.1 Ohms | 1 Ohms | 1 Ohms | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.343" (8.70mm) | 0.343" (8.70mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
