Nichicon-UCV1E561MNL1GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	425 mA @ 120 Hz
Ripple Current @ High Frequency:	850 mA @ 100 kHz
Impedance:	80 mOhms
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.413" (10.50mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

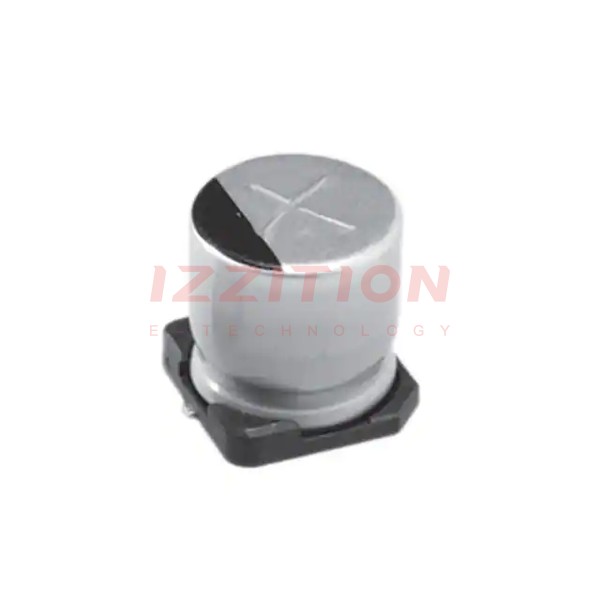

Nichicon UCV1E561MNL1GS
