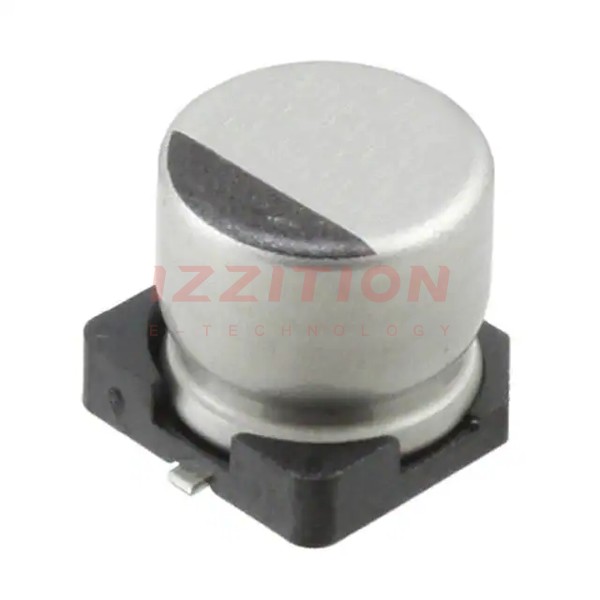

| Part Number | UCL1E101MCL1GS | UCM1E101MCL1GS | UCL1E101MCL6GS | UCJ1E101MCL1GS | UCL1A101MCL1GS | UCL1C101MCL1GS | UCL1E100MCL1GS |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 10 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | 2Ohm | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 125°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | AEC-Q200 | - | - | - | - | - |
| Applications | General Purpose | Automotive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz | 150 mA @ 120 Hz | 250 mA @ 120 Hz | 125 mA @ 120 Hz | 150 mA @ 120 Hz | 150 mA @ 120 Hz | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz | 300 mA @ 100 kHz | 500 mA @ 100 kHz | 250 mA @ 100 kHz | 300 mA @ 100 kHz | 300 mA @ 100 kHz | 160 mA @ 100 kHz |
| Impedance | 160 mOhms | 260 mOhms | 180 mOhms | - | 260 mOhms | 260 mOhms | 850 mOhms |
| Lead Spacing | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) | 0.240" (6.10mm) | 0.256" (6.50mm) | 0.413" (10.50mm) | 0.240" (6.10mm) | 0.228" (5.80mm) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
