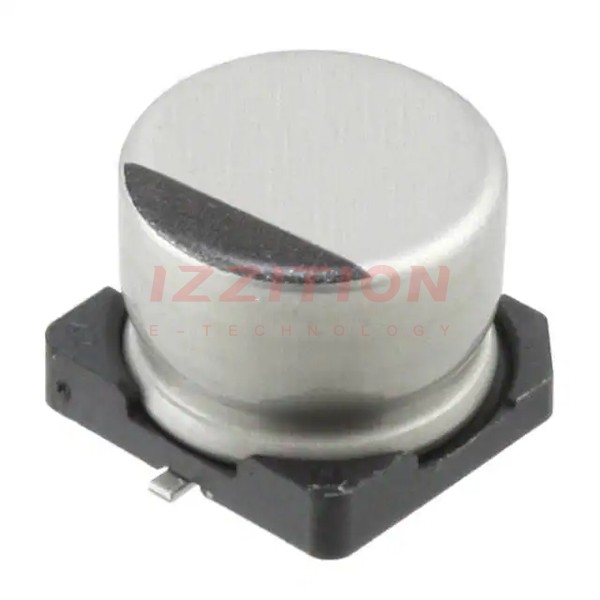

| Part Number | UCL0J331MCL6GS | UCL0J331MCL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz | 600 mA @ 100 kHz |
| Impedance | 180 mOhms | 160 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.244" (6.20mm) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
