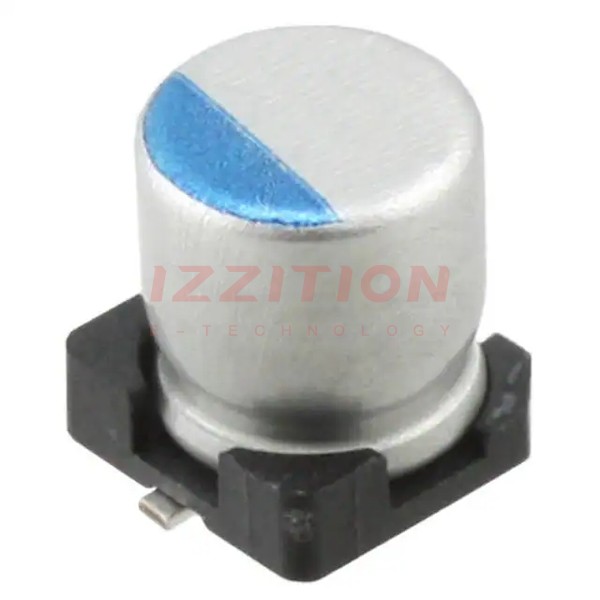

| Part Number | UCL0J222MNL1GS | UCM0J222MNL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 2200 µF | 2200 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | AEC-Q200 |
| Applications | General Purpose | Automotive |
| Ripple Current @ Low Frequency | 595 mA @ 120 Hz | 595 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz | 1.19 A @ 100 kHz |
| Impedance | 60 mOhms | 60 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
