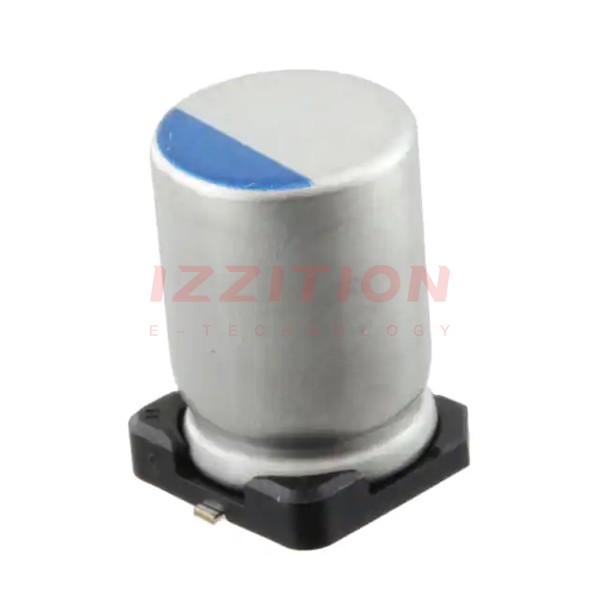

| Part Number | UCJ1H470MCL1GS | UCJ1V470MCL1GS | UCD1H470MCL1GS | UCJ1C470MCL1GS | UCJ1E470MCL1GS |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Not For New Designs | Active | Active |
| Capacitance | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 50 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | 1.5Ohm | 14Ohm | - | 14Ohm | 14Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 105°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -55°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | AEC-Q200 | - | - |
| Applications | General Purpose | General Purpose | Automotive | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 165 mA @ 120 Hz | 47.5 mA @ 120 Hz | 97.5 mA @ 120 Hz | 47.5 mA @ 120 Hz | 47.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 330 mA @ 100 kHz | 95 mA @ 100 kHz | 195 mA @ 100 kHz | 95 mA @ 100 kHz | 95 mA @ 100 kHz |
| Impedance | - | - | 630 mOhms | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.354" (9.00mm) | 0.315" (8.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
