Nichicon-UCD1H2R2MCL1GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2.2 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	30 mA @ 120 Hz
Ripple Current @ High Frequency:	60 mA @ 100 kHz
Impedance:	2.7 Ohms
Lead Spacing:	-
Size / Dimension:	0.157" Dia (4.00mm)
Height - Seated (Max):	0.240" (6.10mm)
Surface Mount Land Size:	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

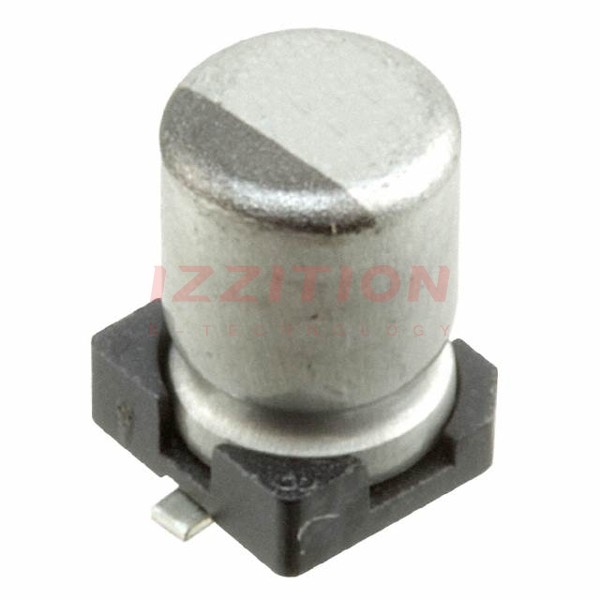

Nichicon UCD1H2R2MCL1GS
